BushBash Starlight Headliner Kit - Installation Guide

Congratulations on Your Purchase!

Thank you for choosing the BushBash Starlight Headliner Kit. This guide will walk you through the installation process, ensuring a seamless and professional result.

Tools & Materials Required:

  • Trim removal tool
  • Microfiber towel
  • Light interior cleaner
  • Pen/marker
  • Drill with appropriately sized drill bit
  • Hot glue gun and glue sticks
  • Cable ties
  • 12V DC power source

Step 1: Removing the Headliner

The removal process varies by vehicle. However, the general procedure is as follows:

  1. Detach Trim and Fixtures – Use a trim removal tool to carefully remove any trim pieces securing the headliner.
  2. Remove Light Fixtures & Roof Accessories – Unscrew or unclip any dome lights, sun visors, grab handles, or roof-mounted accessories.
  3. Extract the Headliner – Once all securing components are removed, carefully slide the headliner out through a door or the boot.

Step 2: Cleaning the Headliner

Before installation, thoroughly clean the headliner:

  • Use a light interior cleaner and a microfiber towel to remove dust and debris.
  • If desired, you may paint the headliner black for a more dramatic effect. However, this is optional and not required for proper installation.

Step 3: Drilling the Headliner

  1. Mark Sections for Even Distribution
    • On the back (non-visible) side of the headliner, use a pen or marker to divide it into four quadrants.
    • This ensures an even spread of starlight fibers.
  2. Determine Hole Placement
    • Divide the total number of fibers by four and distribute them equally across each quadrant.
    • Use the pen to mark hole positions accordingly.
  3. Drill the Holes
    • Use a drill bit that is equal to or slightly smaller than the fiber diameter to ensure a snug fit.

Step 4: Threading & Securing the Fibers

  1. Insert Fibers
    • Starting in the first quadrant, thread fibers through the pre-drilled holes, leaving at least 10cm extending from the visible side.
    • These will be trimmed after reinstallation.
  2. Secure with Hot Glue
    • Apply a small dab of hot glue at the base of each fiber to hold it in place.
  3. Organize the Fibers
    • Use cable ties to neatly group the fibers and prevent tangling.

Step 5: Reinstalling the Headliner

  1. Carefully reposition the headliner inside the vehicle.
  2. Reattach the trim and fixtures removed in Step 1.
  3. Route the fiber bundle toward the designated mounting location of the light motor.

Step 6: Connecting to 12V DC Power

  1. Locate a Power Source
    • Identify an existing 12V DC circuit that powers off with the ignition to prevent battery drain.

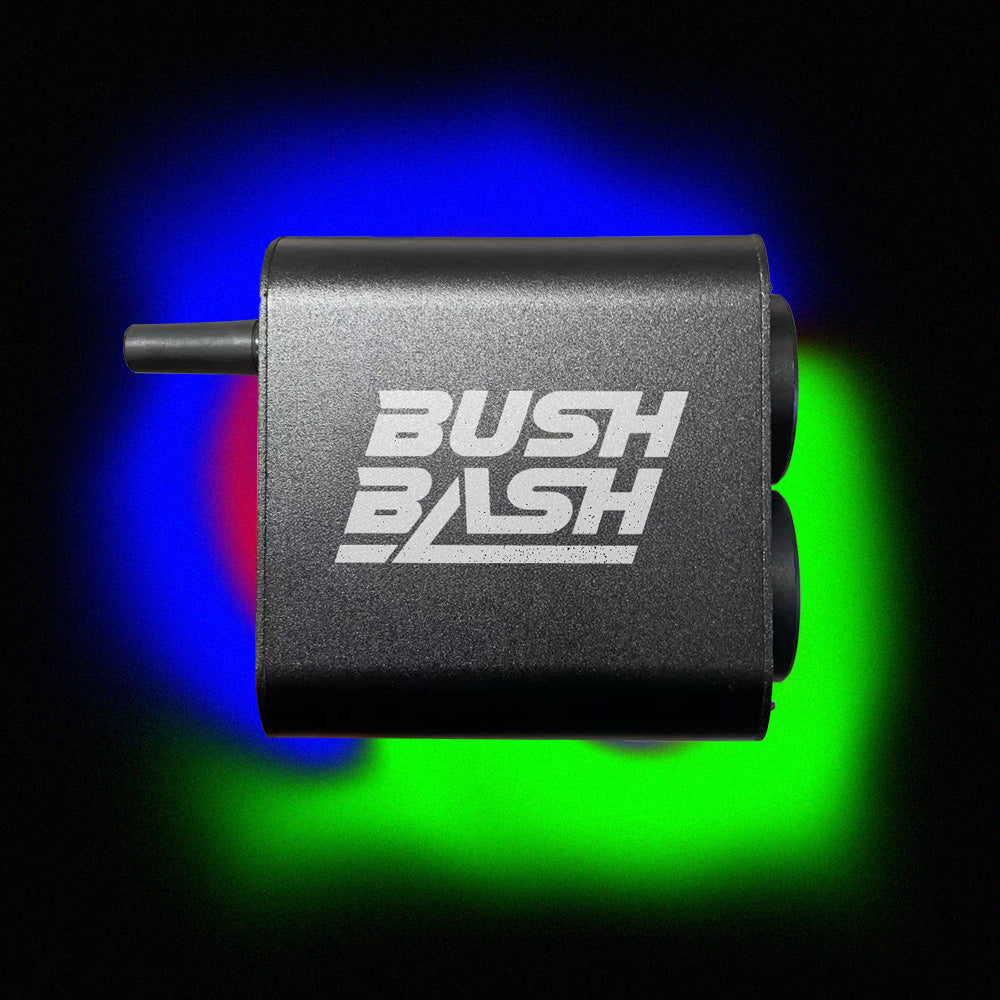

  2. Connect the Light Motor
    • Wire the motor into the selected power source following standard wiring practices.

Step 7: Final Adjustments

  1. Trim the Fibers – Once the headliner is secured, carefully cut the fiber ends flush with the headliner surface.
  2. Power On & Test – Use the supplied remote or mobile app to activate the lights and adjust settings to your preference.

Congratulations! Your BushBash Starlight Headliner Kit is now installed. Enjoy the unique ambiance and custom lighting in your vehicle!

For additional support, please refer to our website or contact our customer service team.
